  • 알람 파이프라인 구축하기
    Metric 2021. 6. 26. 17:29
    반응형

    개요

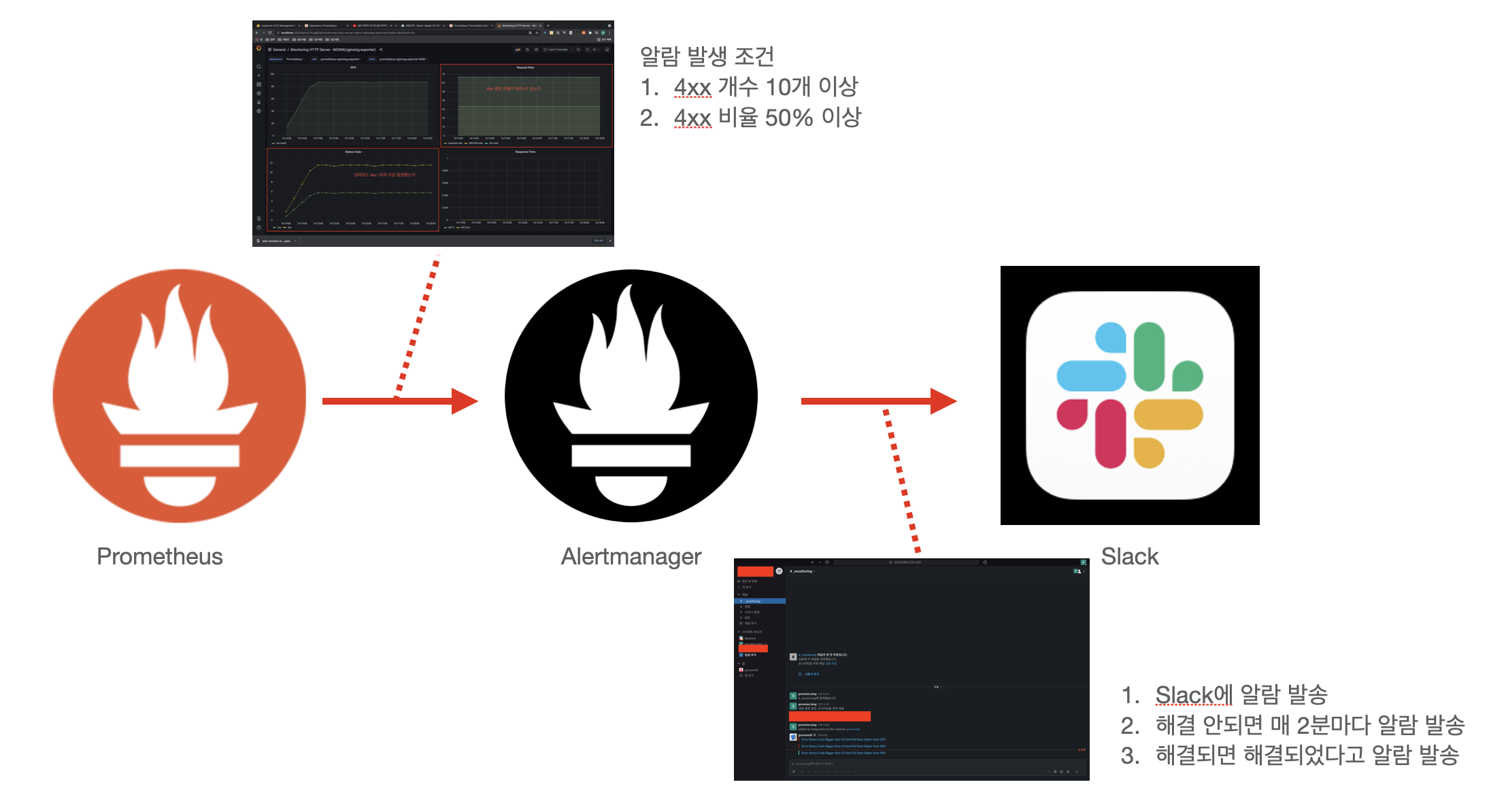

    이번 장에서는 Prometheus, Alertmanager, Slack을 연동해서, 알람 파이프라인을 구축할 것이다. 우리가 구축할 알람 파이프라인은 다음과 같다.

    알람 파이프라인에 대해 간단히 설명하자면, 먼저 지난 장 "서비스 메트릭 모니터링하기 (1) prometheus-nginxlog-exporter"에서 진행했던 것을 토대로 Nginx, Prometheus, prometheus-nginxlog-exporter를 연동해서 상태 코드 및, 응답 실패율에 대한 정보를 얻는다. 그리고 다음 조건을 만족하면 Prometheus에서 알람을 발생(Firing)시킨다.

    1. 1분간 상태 코드 4xx 개수의 합이 10개 이상이다.
    2. 1분간 4xx 응답 실패율이 50% 이상이다.

    그리고 이 발생된 알람을 Alertmanager에 전달하고 알람이 처리(Resolved)되기 전까지 매 2분동안 Slack에 알람을 전달(Notify)하는 것이다.



    이 문서에서는 편의성을 위해서 Docker 환경에서 진행할 것이나, 실제 서버 환경에서 어떻게 작업해야 하는지까지 최대한 다루도록 하겠다. 관련 코드는 다음 링크를 참고하길 바란다.

    사전 작업 (1) Slack App 만들기

    Prometheus에서 발생된 알람을 Alertmanager에서 Slack으로 전달하기 위해서는 사전에 Slack 회원가입 및 워크 스페이스를 가지고 있어야 하며, Slack App 생성해두어야 한다. 왜냐하면 앱을 만들게 되면 외부에서 앱을 통해서 Slack API를 사용할 수 있도록 "웹 훅 URL"이 할당되는데, 이를 Alertmanager가 이용해서 Slack에게 알람을 전달하기 때문이다. 파이프라인 구축을 위해서 슬랙 앱을 만들어보자.



    먼저 "https://api.slack.com/"에 접속한다.

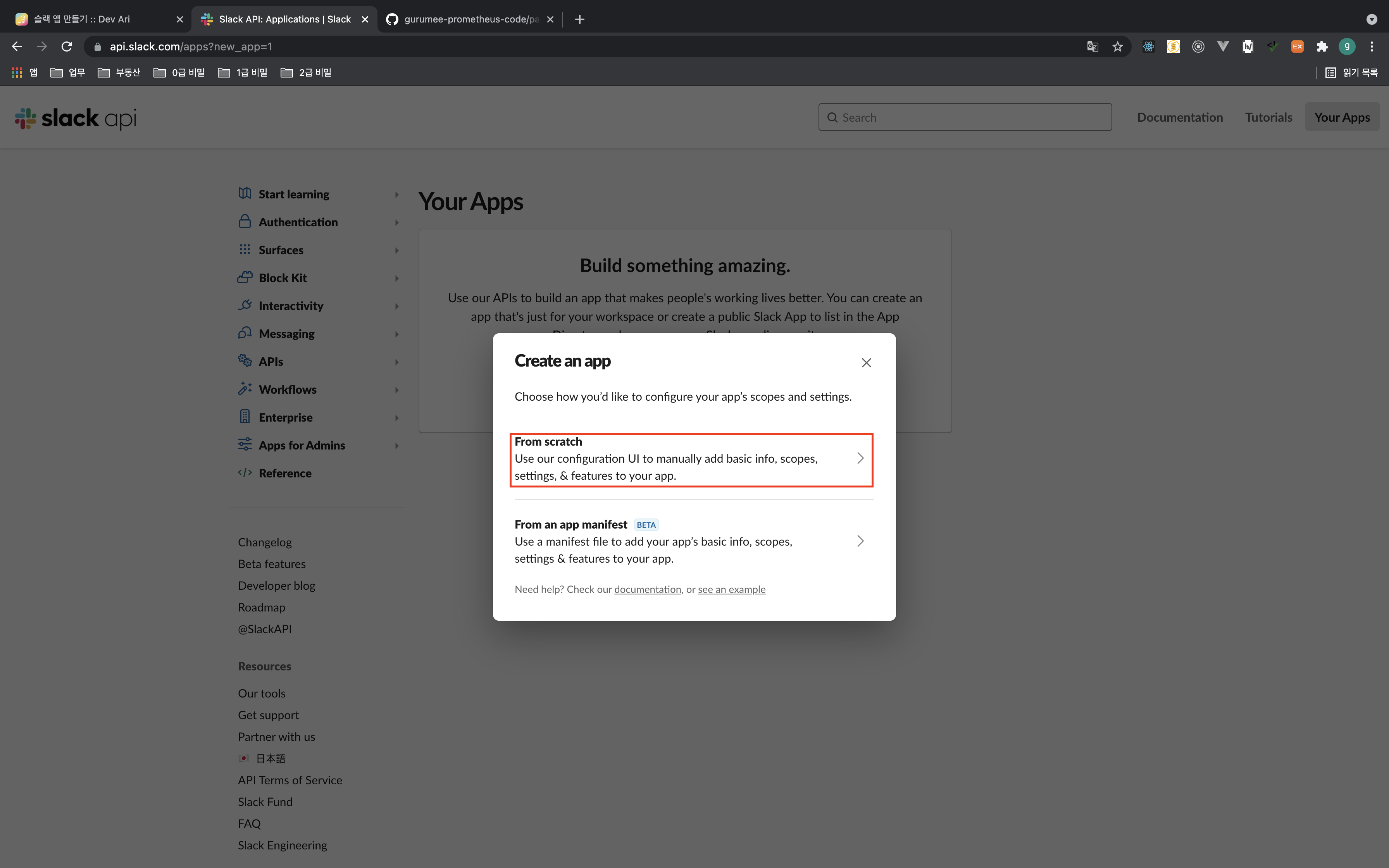

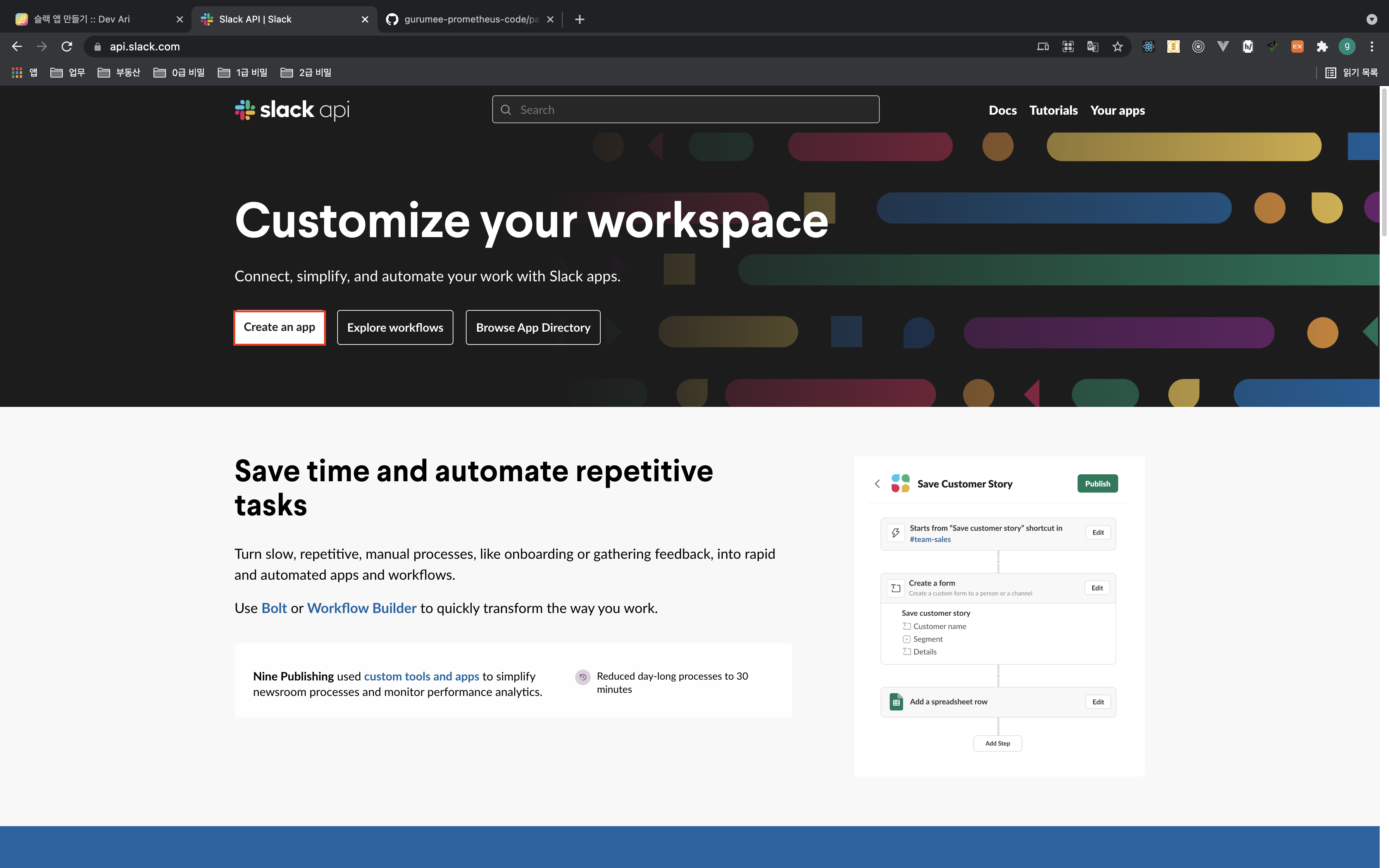

    위의 그림에서, "Create an app"을 누른다. 그럼 페이지 이동과 함께 다음과 같은 팝업창이 뜨게 된다.

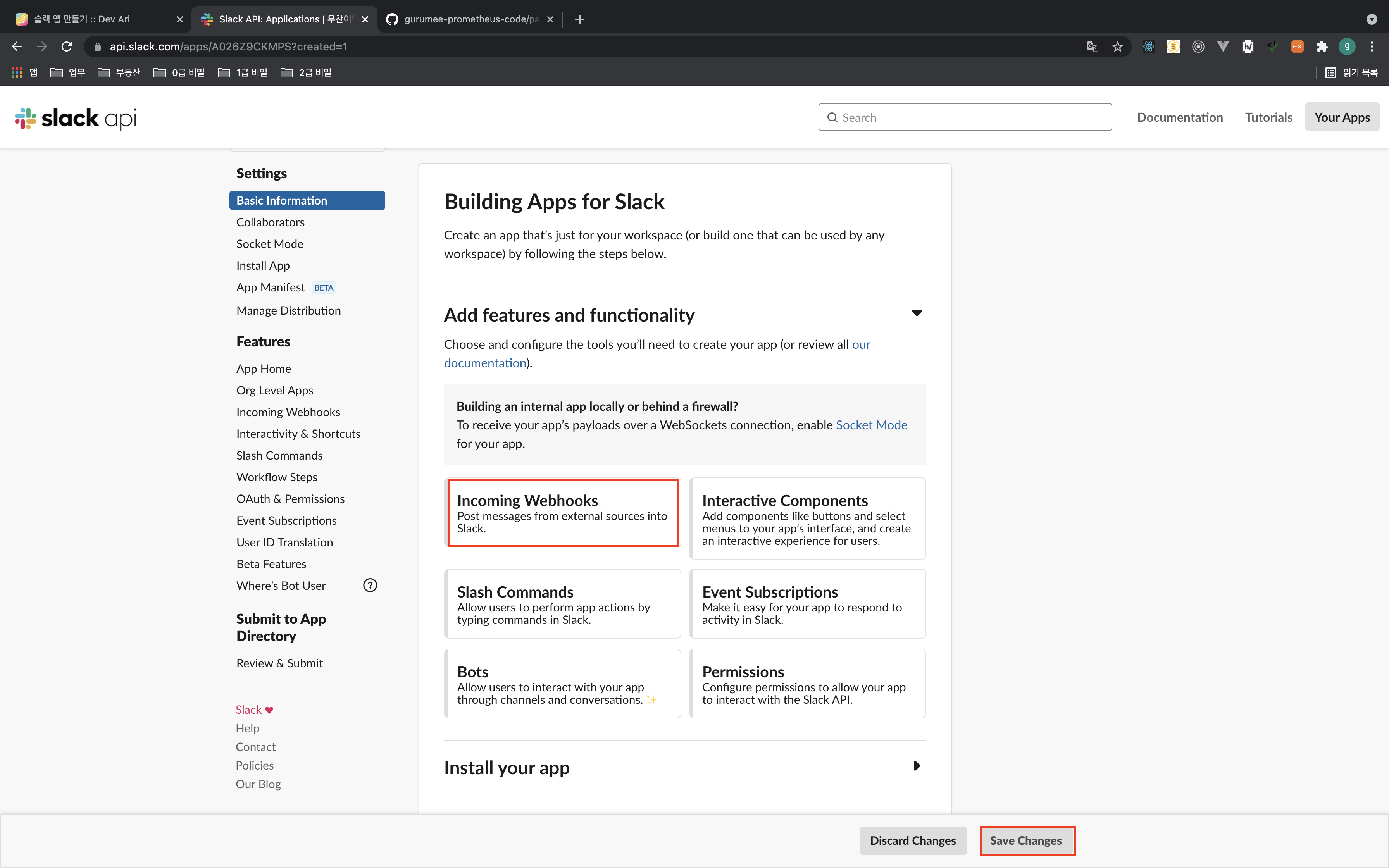

    "From scratch"를 클릭한다.

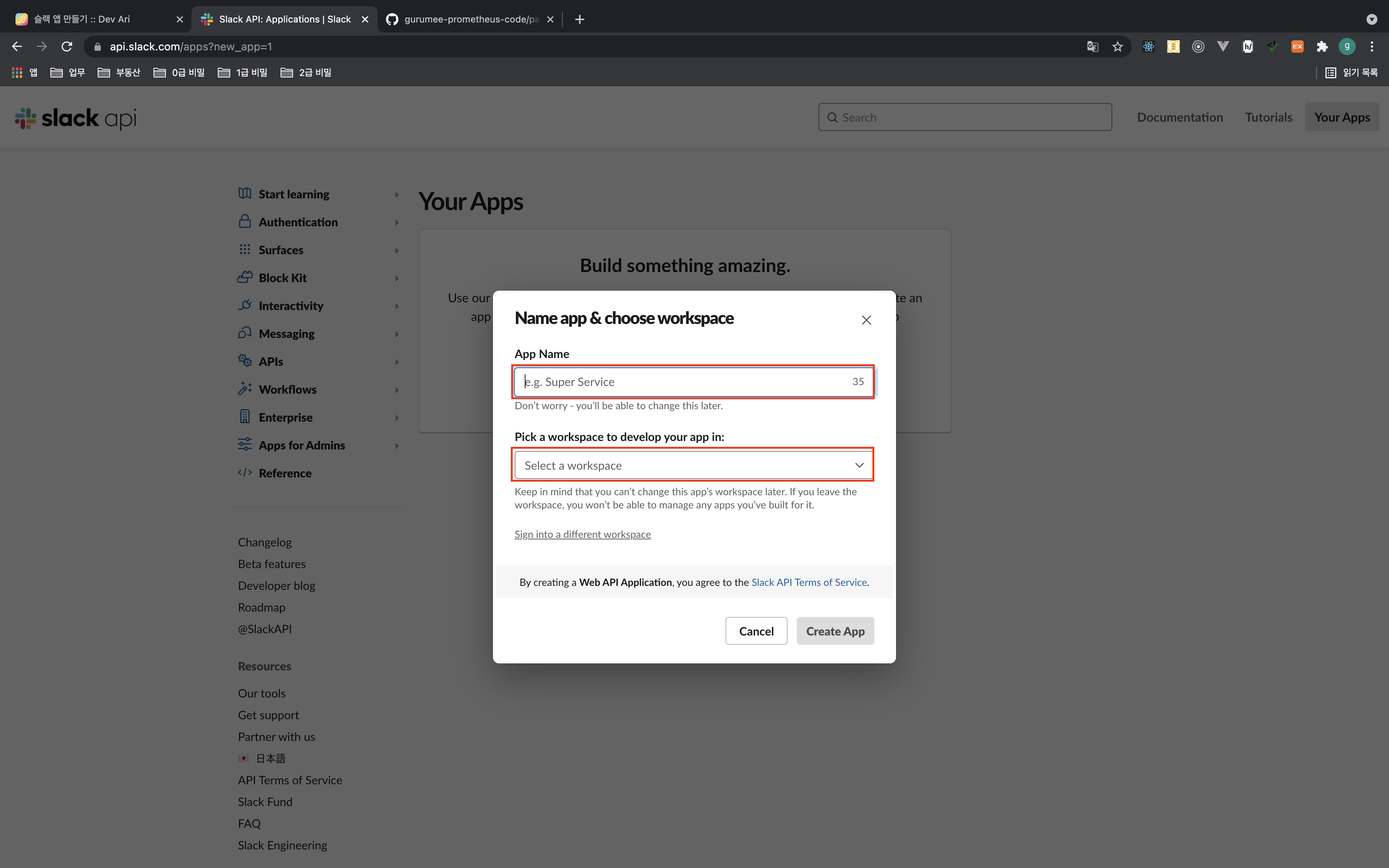

    앱의 이름과 연동할 워크스페이스를 지정한다. 그 후, "Create App"을 누른다.

    그러면 위의 그림과 같이 다른 페이지로 이동되는데, "Incoming Webhooks"를 누른다.

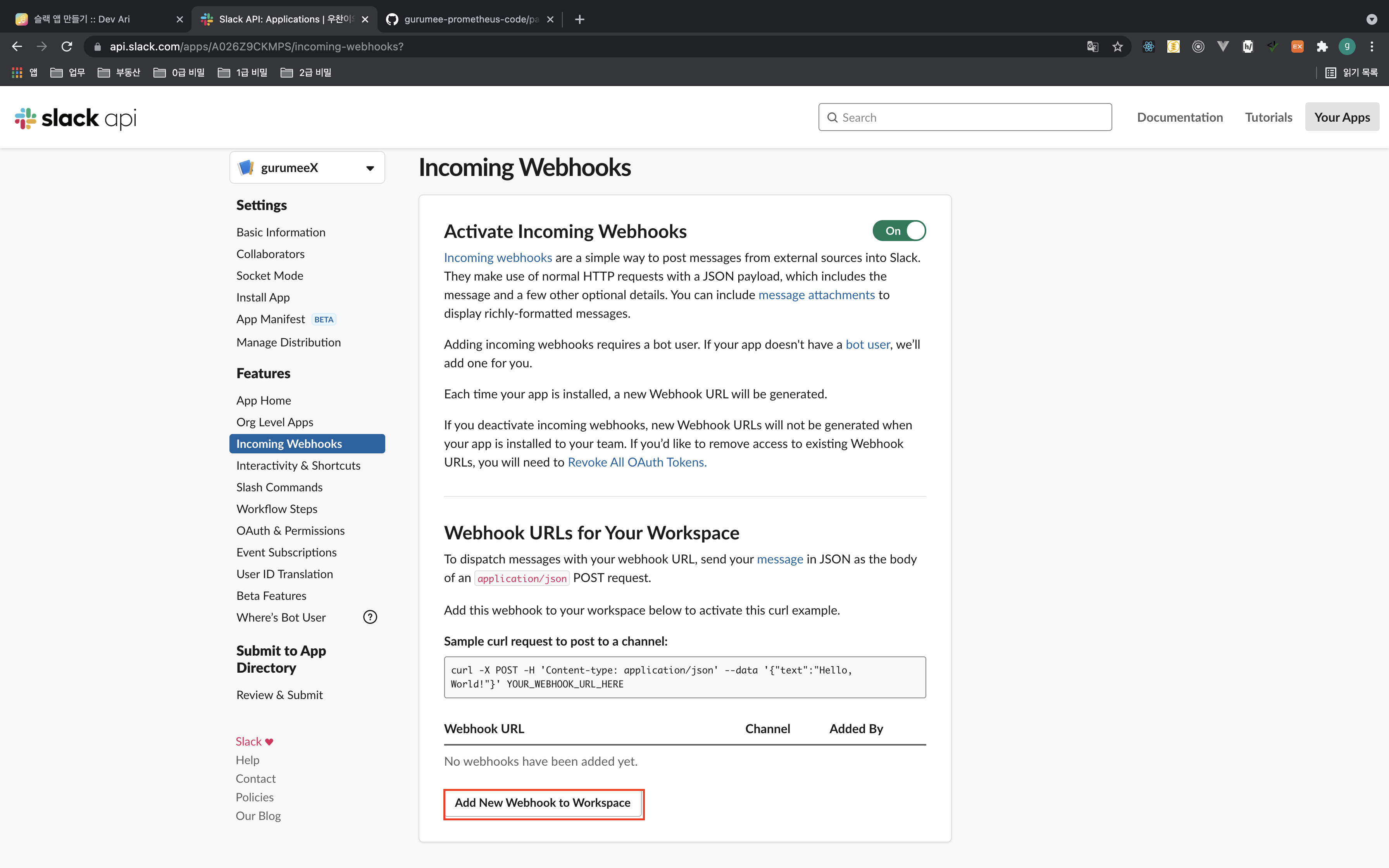

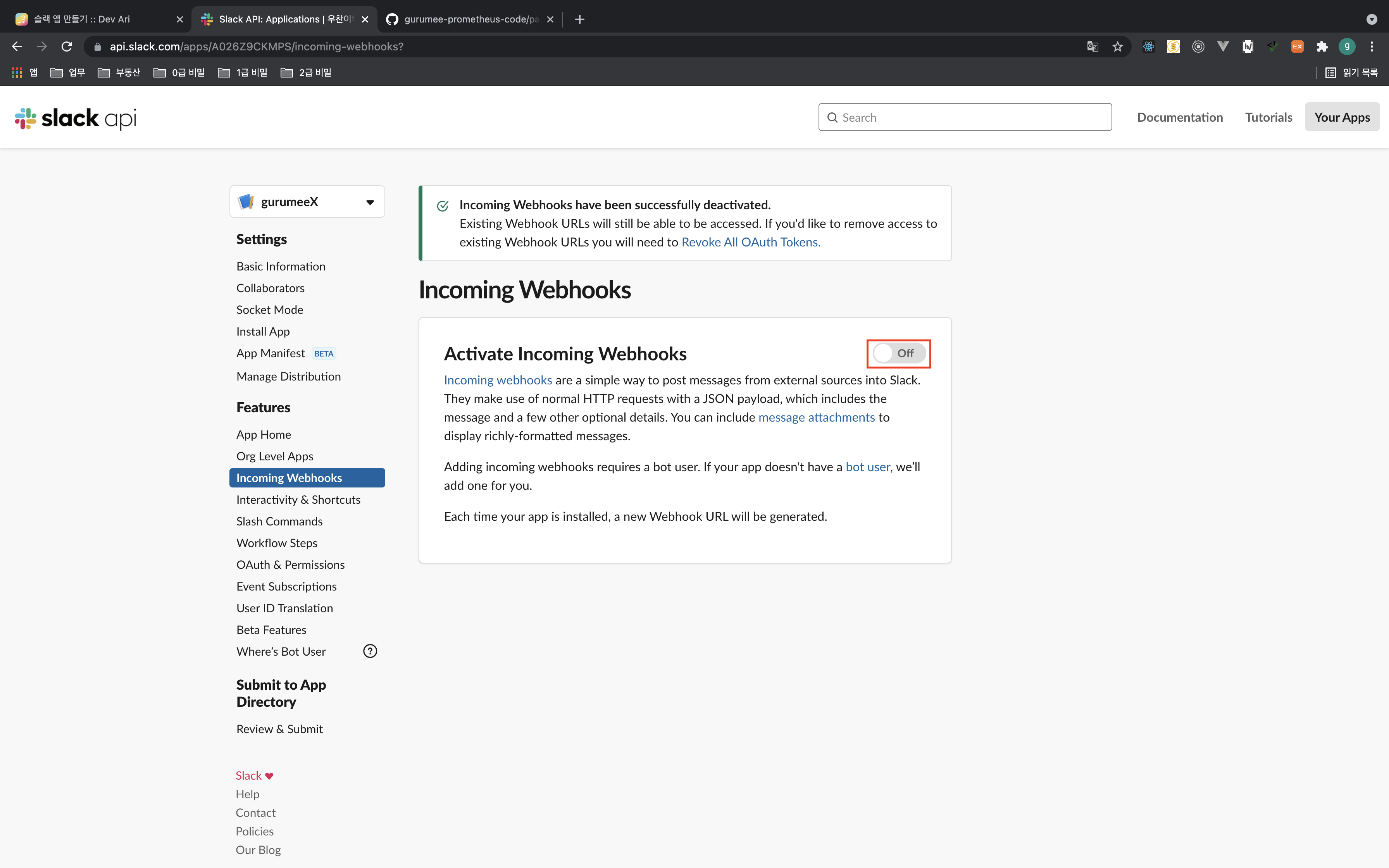

    그럼 Webhook을 설정할 수 있는 페이지로 넘어간다. 상단 "off" 토글을 눌러 "on"으로 변경한다.

    그럼 위 그림처럼 UI가 변경되는데, 하단에 "Add New Webhook to Workspace"를 클릭한다.

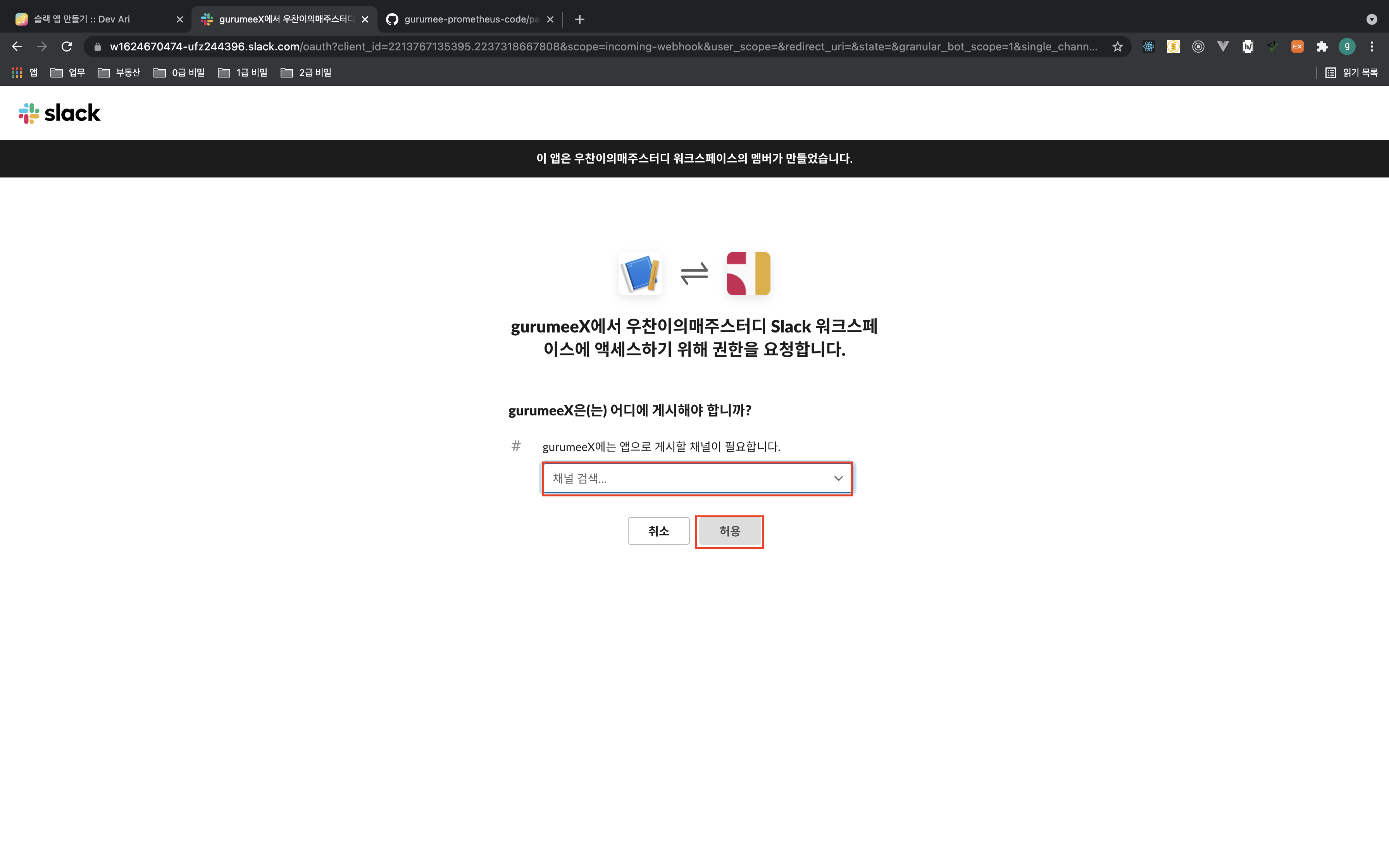

    그럼 위의 그림처럼 페이지 이동이 되는데, 여기서 알람을 전송할 채널을 선택하면 된다. 선택 후 "Allow" 버튼을 누르면 된다.

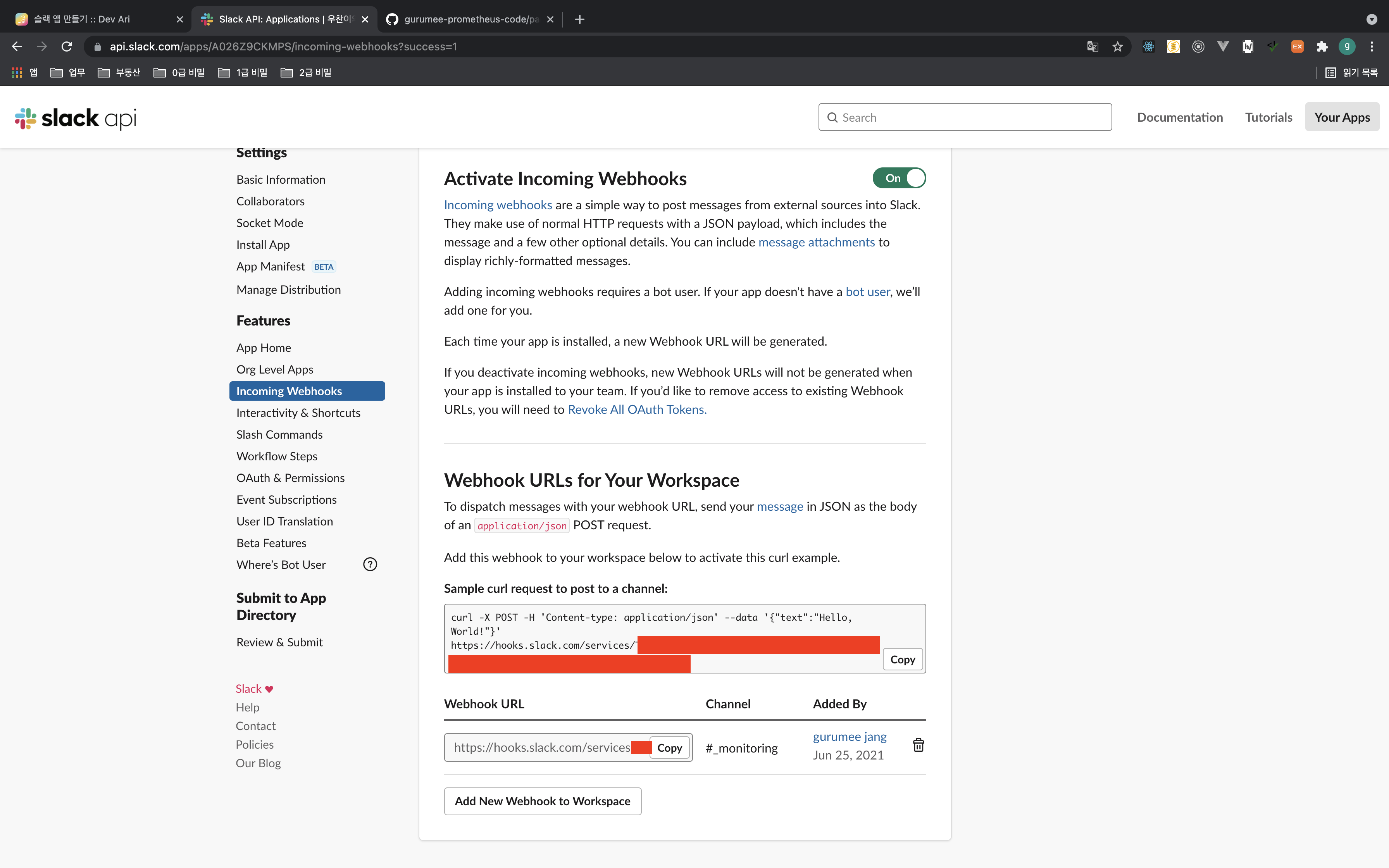

    그럼 위 그림과 같이 Webhook URL이 보이는 페이지로 리다이렉션된다. 이 URL은 외부로 노출이 되면 안되기 때문에 보안에 유의한다.

    추후 Alertmanger에서 Slack으로 전송하게 하는 설정에서 이 Webhook URL을 사용할 것이다. (아래 Copy 버튼을 누른다.)

    사전 작업 (2) Alertmanager 설치하기

    이 장의 내용을 로컬에서 진행할 예정인 사람들은 가볍게 패쓰해도 좋다. Alertmanager 설치는 다음 환경에서 진행되었다.

    • AWS EC2
    • AMI: Amazon Linux 2 AMI
    • Instance Type: t2.micro

    Alertmanager는 다음 명령어로 설치가 가능하다.

    # alertmanager 다운로드
    $ wget https://github.com/prometheus/alertmanager/releases/download/v0.22.2/alertmanager-0.22.2.linux-amd64.tar.gz

    # 압축 파일 해제
    $ tar -xvf alertmanager-0.22.2.linux-amd64.tar.gz

    # 압축 파일 /home/ec2-user/apps/alertmanager 로 이동
    $ mv alertmanager-0.22.2.linux-amd64 /home/ec2-user/apps/alertmanager

    # 압축 파일 삭제
    $ rm alertmanager-0.22.2.linux-amd64.tar.gz

    # 서비스 파일 등록
    $ sudo tee /etc/systemd/system/alertmanager.service<<EOF [Unit]
    Description=Alert Manager

    [Service]
    ExecStart=/home/ec2-user/apps/alertmanager/alertmanager --config.file=/home/ec2-user/apps/alertmanager/alertmanager.yml

    [Install]
    WantedBy=multi-user.target
    EOF

    또한 다음 명령어로 Alertmanager를 실행시킬 수 있다.

    # alertmanager 실행
    $ sudo systemctl restart alertmanager

    # alertmanager 상태 확인
    $ sudo systemctl status alertmanager
    ● alertmanager.service
       Loaded: loaded (/etc/systemd/system/alertmanager.service; disabled; vendor preset: disabled)
       Active: active (running) since 토 2021-06-26 05:23:59 UTC; 4s ago
     Main PID: 3368 (alertmanager)
       CGroup: /system.slice/alertmanager.service
               └─3368 /home/ec2-user/apps/alertmanager/alertmanager --config.file=/home/ec2-user/apps/alertmanager/alertmanager.yml
    ...

    이렇게 터미널에 결과가 나왔다면 설치는 완료된 것이다. Slack과의 연동은 추후 진행되는 "파이프라인 구축하기 (3)"절에서 확인할 수 있다.

    파이프라인 구축하기 (1) promql과 alert rule 이용해서 알람 만들기

    이제 Prometheus에서 알람을 정의해보자. 우선 알람의 조건을 다시 보자.

    1. 1분간 상태 코드 4xx 개수의 합이 10개 이상이다.
    2. 1분간 4xx 응답 실패율이 50% 이상이다.

    이는 PromQL로 바꾸면 다음과 같이 작성할 수 있다.

    1. sum(rate(nginx_http_response_count_total{status=~"4.."}[1m])) >= 10
    2. sum(rate(nginx_http_response_count_total{status=~"4.."}[1m])) / sum(rate(nginx_http_response_count_total[1m])) * 100 >= 50

    nginx_http_response_count_totalprometheus-nginxlog-exporter가 수집하는 메트릭으로써, Nginx에서 받응 응답의 개수를 의미한다. 이 메트릭은 Label로 "status" 즉, 상태 코드에 대한 정보를 저장하고 있다. 따라서, 4xx, 5xx는 Label에서 정규 표현식으로 {status=~"4.."} 매칭하여 구할 수 있다. 그리고 응답 실패율은, "4xx, 5xx 개수의 합 / 전체 상태 코드 개수의 합"으로 구할 수 있다.



    이제 위 PromQL을 이용해서 Alert Rule을 작성하면, 알람을 만들 수 있다. Prometheus에서 만들 알람에 대한 정보를 저장할 파일을 rule file이라고 부른다. rule fileprometheus.yml과 같은 위치에 rules 디렉토리를 만들고 규칙을 작성할 잡과 같은 이름으로 작성하면 된다. 지금은 prometheus-nginxlog-exporter를 수집하는 job 이름을 prometheus-nginxlog-exporter로 설정 했으니까, prometheus_nginxlog_exporter_rules.yml 같은 이름으로 지으면 된다. 파일 내용은 다음과 같다.



    part4/ch01/prometheus/rules/prometheus_nginxlog_exporter_rules.yml (초기 버전)

    groups:
    - name: prometheus_nginxlog_exporter
      rules:
      - alert: ErrorStatusAndFailRate
        expr: |
          sum(rate(nginx_http_response_count_total{status=~"4.."}[1m])) >= 10
          and
          (
            sum(rate(nginx_http_response_count_total{status=~"4.."}[1m]))
            /
            sum(rate(nginx_http_response_count_total[1m])) * 100
          ) >= 50
        for: 1m
        labels:
          severity: 'critical'
        annotations:
          summary: 'Error Status Code Bigger than 10 And Fail Rate Higher than 50%'

    여기서 중요한 것은 alert, expr, labels, for이다. 이것이 실제로 Prometheus에서 알람을 설정하는 코드이다. Prometheusexpr에 해당하는 쿼리를 계속 감시하다가 for에서 지정한 시간 동안 조건을 충족하게 되면 알림을 보내게 된다.



    rule file을 작성했으면, Prometheus 설정 파일인 promethes.yml에 다음과 같이 작성해두면 된다.



    part4/ch01/prometheus/prometheus.yml

    global:
      scrape_interval:     15s # By default, scrape targets every 15 seconds.
      evaluation_interval: 15s # By default, scrape targets every 15 seconds.

    rule_files:
      - 'rules/prometheus_nginx_log_exporter_rules.yml'

    # ...

    참고! prometheus.yml은 어디 있는가?

    이전 절 "Prometheus 설치"를 잘 따라했다면, Prometheus가 설치한 위치는 "/home/ec2-user/apps/prometheus/"일 것이다. 여기에 prometheus.yml과 rules >디렉토리가 같이 있으면 된다. 다음처럼 말이다.

    |- /home/ec2-user/apps/prometheus/
       |- prometheus.yml
       |- rules
           |- prometheus_nginxlog_exporter_rules.yml



    설정한 rule file이 잘 작동하는지 확인하려면 다음 명령어를 실행하면 된다.

    $ /promtool check rules rules/prometheus_nginxlog_exporter_rules.yml
    Checking rules/prometheus_nginxlog_exporter_rules.yml
    SUCCESS: 1 rules found



    이제 Prometheus 웹 UI 상단에 "Alerts" 메뉴에서 보면 설정된 것을 확인할 수 있다.

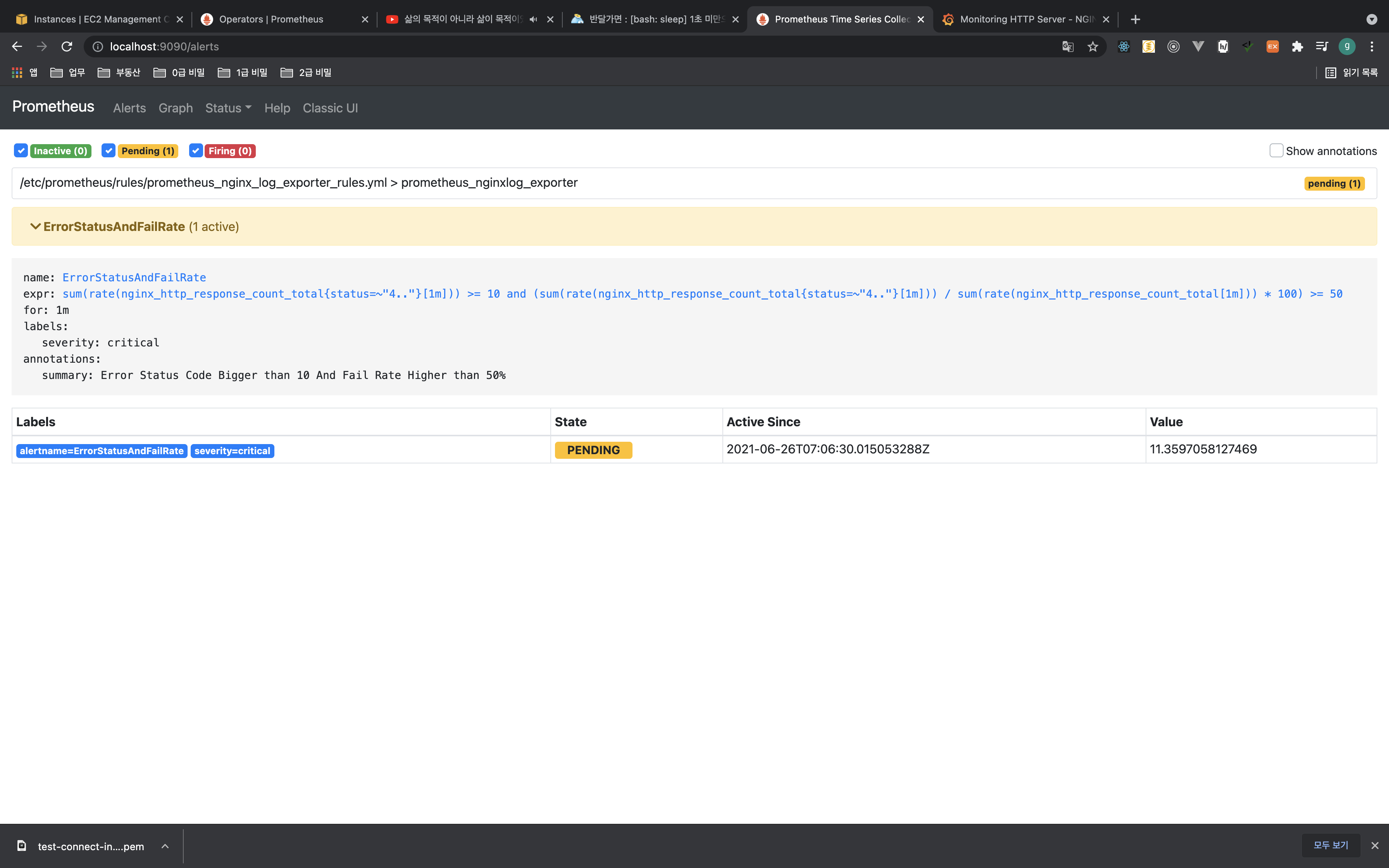

    알림이 처음 발생되면 다음처럼 PENDING 상태가 된다.

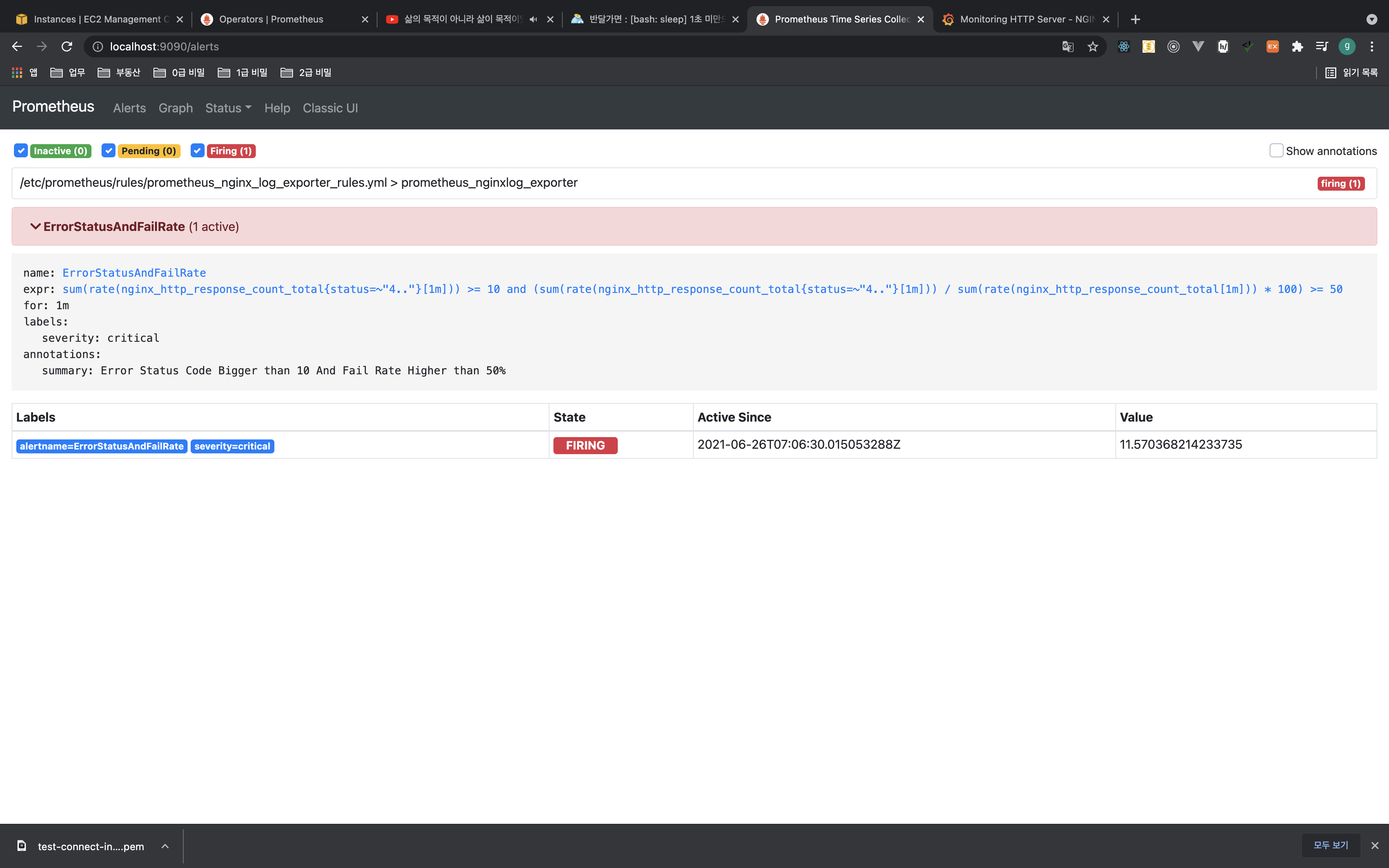

    이 상태가 1분 이상 지속되면 FIRING 상태가 된다.

    파이프라인 구축하기 (2) recording rule 이용해서 알람 최적화하기

    바로 작업해도 좋지만, 현재 알람의 문제는 PromQL이 쿼리하는 시계열의 카디널리티가 매우 높다. 이는 알람의 수가 지금처럼 적으면 상관 없지만, 알람이 많아질수록 모니터링 요소가 많아질수록 Prometheus에게 부담이 된다. 이런 카디널리티를 줄이고 시계열을 쿼리하는 비용을 최적화하기 위해서 Recording Rule이라는 것을 이용한다. (InfluxDBContinous Query와 유사하다.)

    다음과 같이 prometheus_nginxlog_exporter_rules.yml을 수정한다.



    part4/ch01/prometheus/rules/prometheus_nginxlog_exporter_rules.yml

    groups:
    - name: prometheus_nginxlog_exporter
      rules:
      - record: job:prometheus_nginxlog_exporter:status_4xx_1m
        expr: sum(rate(nginx_http_response_count_total{status=~"4.."}[1m]))
      - record: job:prometheus_nginxlog_exporter:status_5xx_1m
        expr: sum(rate(nginx_http_response_count_total{status=~"5.."}[1m]))
      - record: job:prometheus_nginxlog_exporter:status_total_1m
        expr: sum(rate(nginx_http_response_count_total[1m]))
      - alert: ErrorStatusAndFailRate
        expr: |
          (job:prometheus_nginxlog_exporter:status_4xx_1m + job:prometheus_nginxlog_exporter:status_5xx_1m) >= 10
          and
          (
            (job:prometheus_nginxlog_exporter:status_4xx_1m + job:prometheus_nginxlog_exporter:status_5xx_1m)
            /
            job:prometheus_nginxlog_exporter:status_total_1m
            * 100
          ) >= 50
        for: 1m
        labels:
          severity: 'critical'
        annotations:
          summary: 'Error Status Code Bigger than 10 And Fail Rate Higher than 50%'

    여기서 record로 작성된 부분들이 Recording Rule이다. 해당 값으로 설정한 이름으로 쿼리할 수 있다. expr에 작성된 PromQL을 하나의 시계열로 만들게 된다.

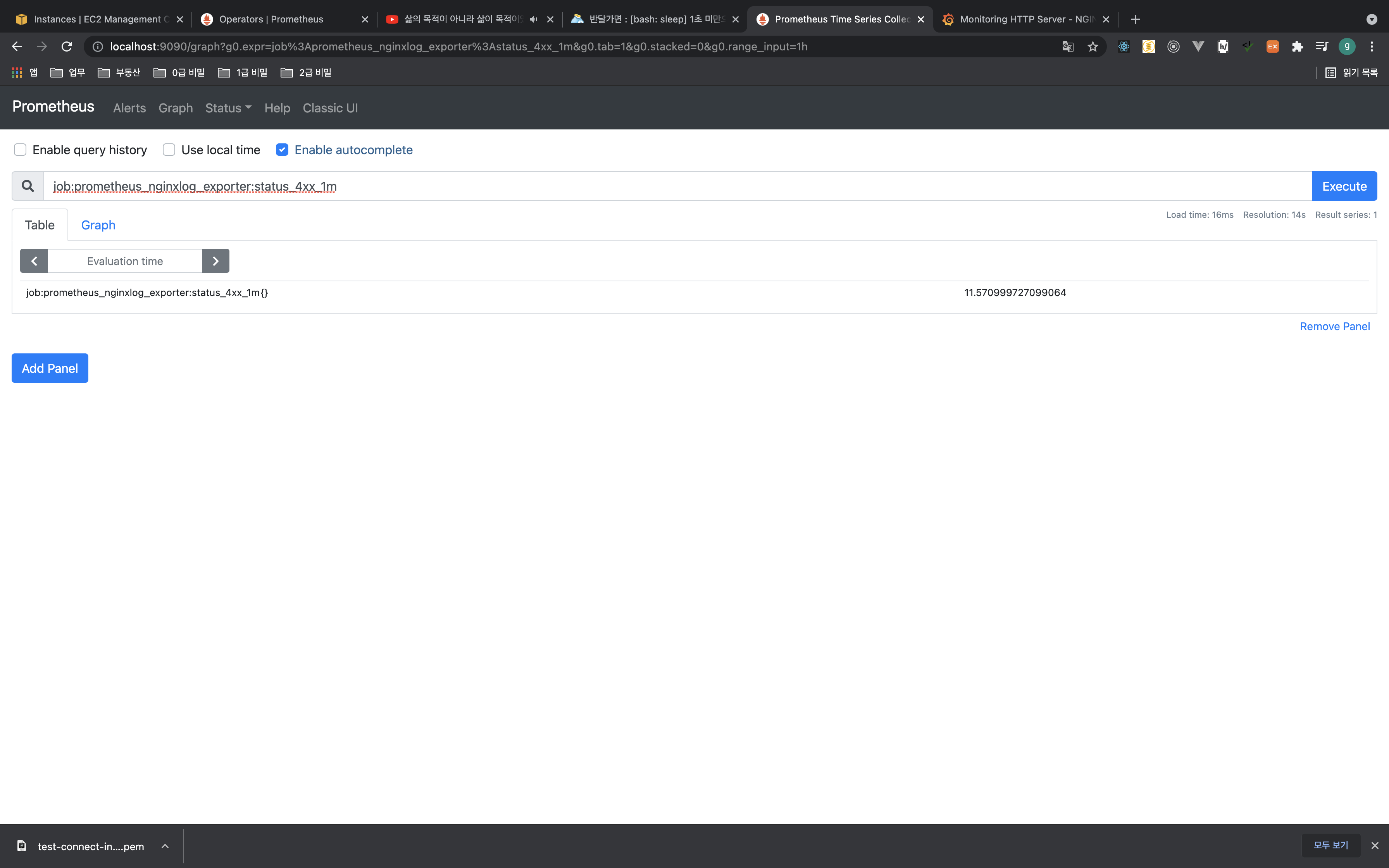

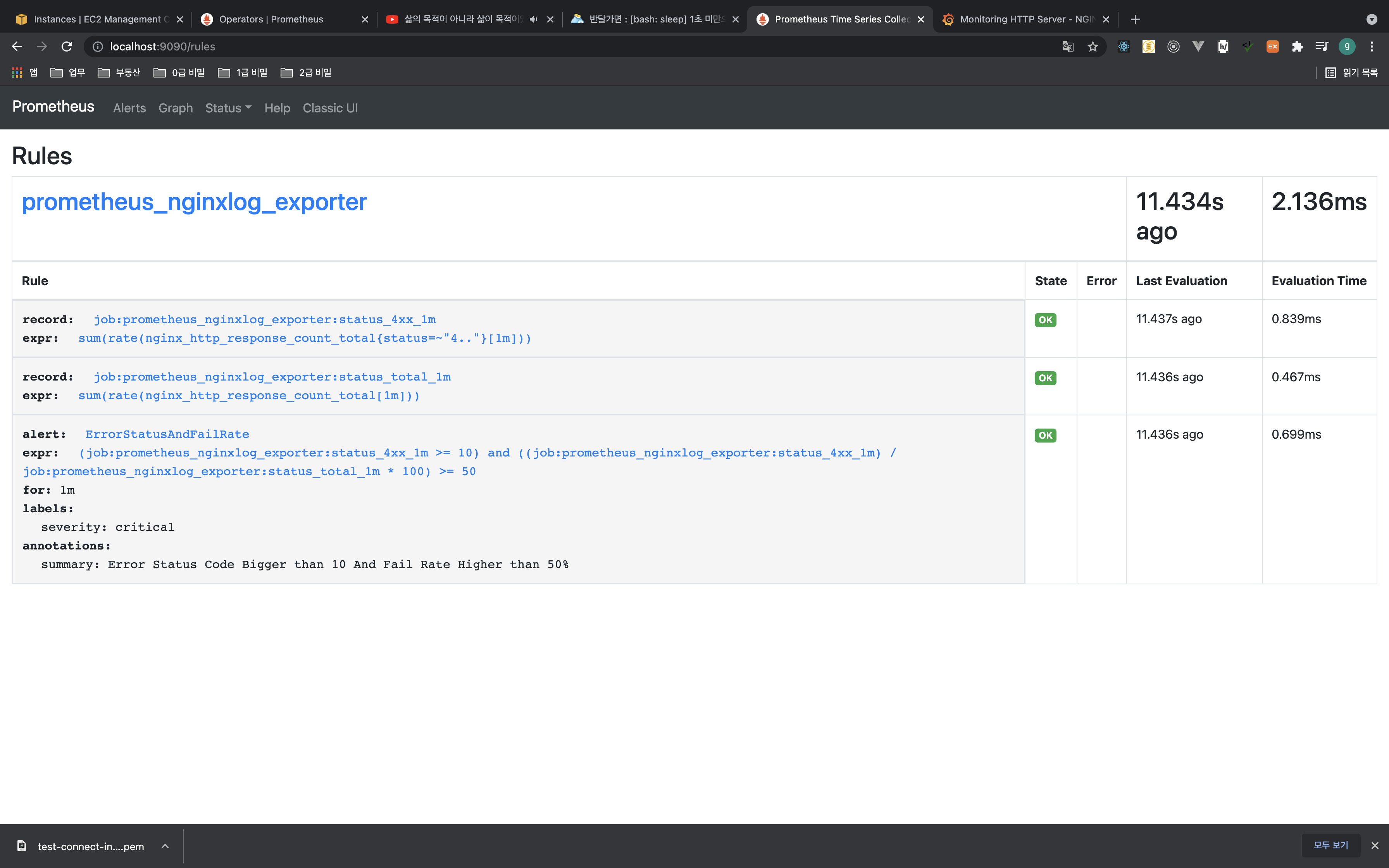

    여기서 한 가지 더 중요한 점은, Alert Rule에서도 Recording Rule을 이용할 수 있다는 것이다. 쿼리 뿐 아니라 알람에도 더 높은 성능을 낼 수 있게 도와준다는 것이다. 작성된 Alert RuleRecording RulePrometheus 웹 UI 상단의 "Status" > "Rules" 메뉴에서 확인할 수 있다.

    각 규칙에 대해 언제 업데이트 되었는지 얼마나 시간이 걸렸는지도 확인할 수 있다.

    파이프라인 구축하기 (3) Alertmanager 이용해서 Slack에 알람 전송하기

    이제 마지막으로 Prometheus에서 발생한 알람을 Alertmanager에 전달하여, 처리하기 전까지 매 2분동안 Slack에 전달해보자. Alertmanger의 설정 파일인 alertmanager.yml을 다음과 같이 설정한다.



    part4/ch01/alertmanager/alertmanager.yml

    global:
      slack_api_url: '<당신의 슬랙 Webhook URL>'

    route:
      receiver: 'slack-notifications'
      repeat_interval: 2m
    receivers:
      - name: 'slack-notifications'
        slack_configs:
        - channel: '#_monitoring'
          send_resolved: true
          title: "{{ range .Alerts }}{{ .Annotations.summary }}\n{{ end }}"
          text: "{{ range .Alerts }}{{ .Annotations.description }}\n{{ end }}"

    이 때 "slack_api_url" 이전 절 "사전 작업 (1) Slack App 만들기"에서 만들었던 Slack App의 웹훅 URL을 설정해준다. 서버에서 작업한다면, alertmanager.ymlAlertmanager를 설치한 경로에 올려두어야 한다.

    |- /home/ec2-user/apps/alertmanager
        |- alertmanager.yml
        |- alertmanager
        |- amtool
        |- ...



    그 후 다음 명령어를 입력해서 Alertmanager를 재시작하면 된다.

    $ sudo systemctl restart alertmanager



    그 다음 prometheus.yml을 다음과 같이 수정한 후 Prometheus를 재시작하면 우리가 원하는 파이프라인 구축이 완료된다.



    part4/ch01/prometheus/prometheus.yml

    # ...
    rule_files:
      - 'rules/prometheus_nginx_log_exporter_rules.yml'

    # alert
    alerting:
      alertmanagers:
      - scheme: http
        static_configs:
        - targets:
          - "alertmanager:9093" # <alertmanager ip:port>

    # ...

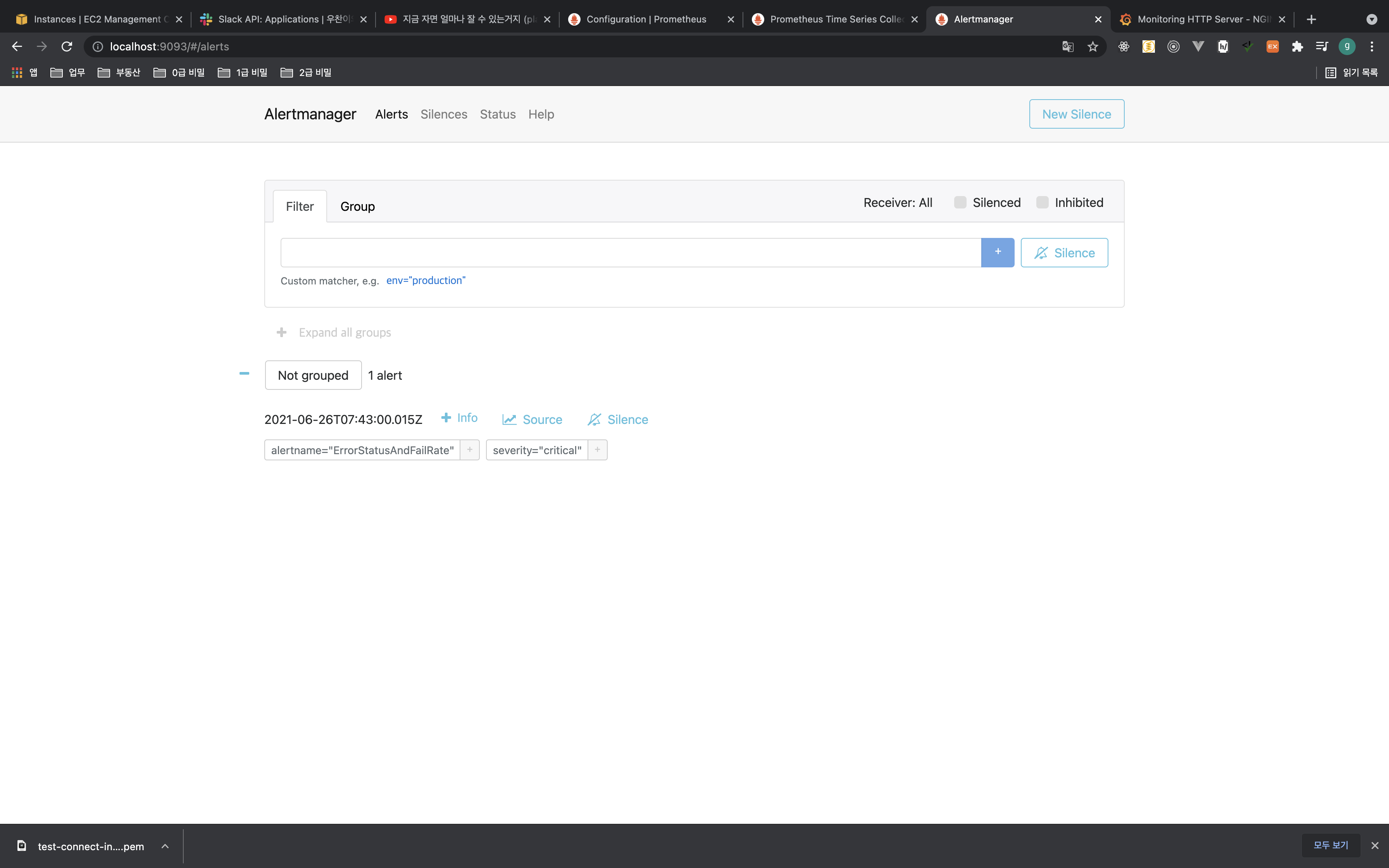

    다음은 Alertmanager 웹 UI(http://)에서 Prometheus에서 발생한 알람이 전달된 모습이다.

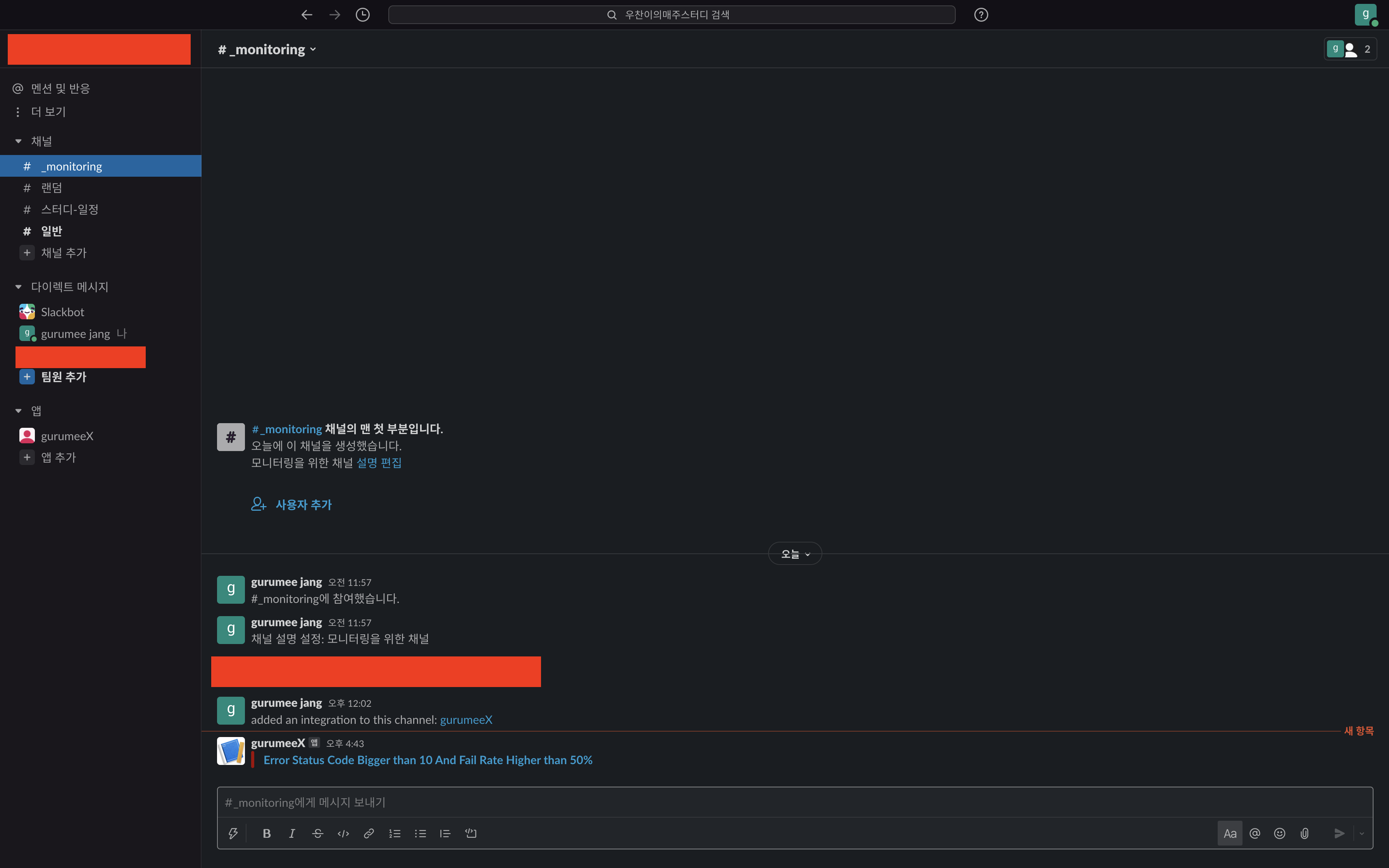

    그리고 Slack에 전달 된 모습이다.

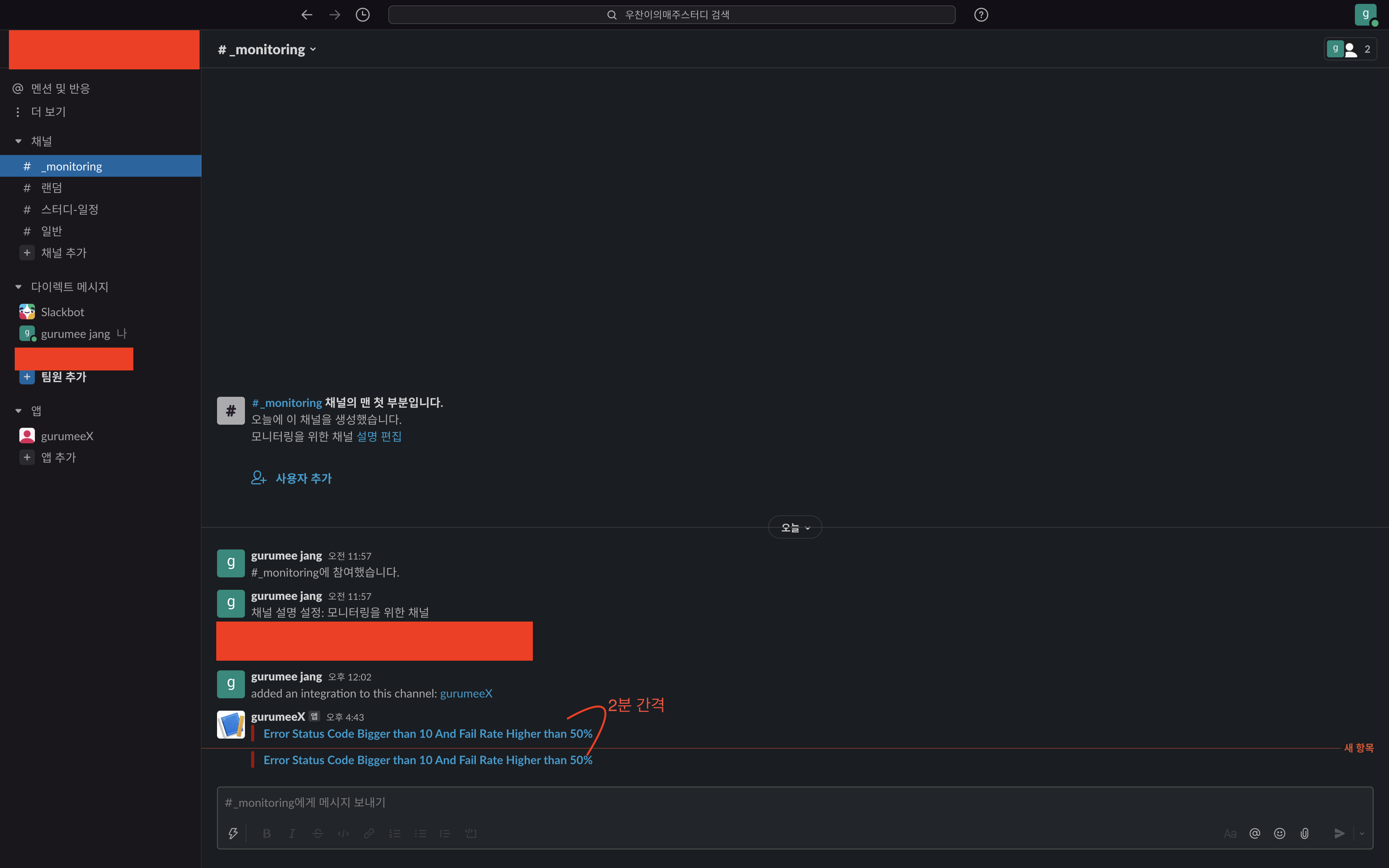

    그리고 약 2분동안 처리되지 않았을 때 다시 알람이 발생된 모습이다.

    이제 알람이 해결되서 다시 복구된 모습이다. "이를 RESOLVED"되었다고 한다.
